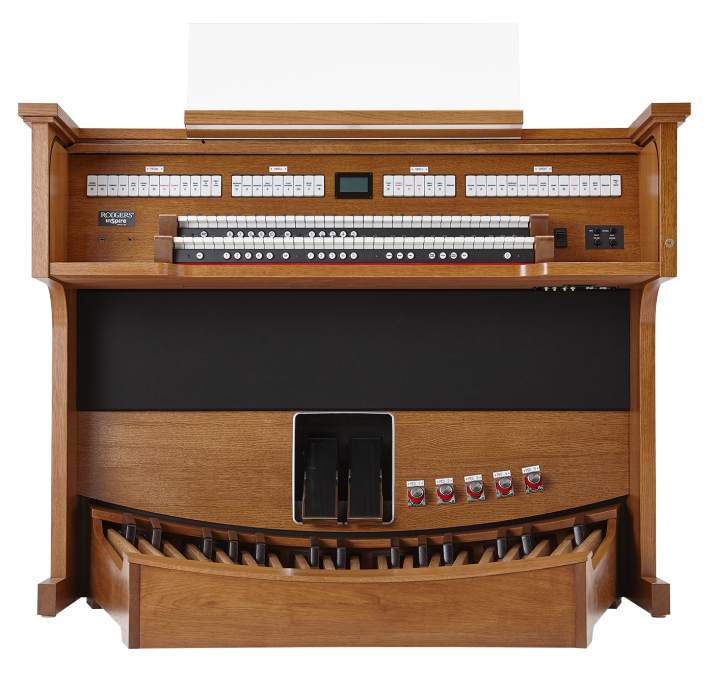

Inspire Series 233
With its state-of-the-art 165 pipe organ voices in four different styles, the inspire series 233 was especially designed to enhance the spiritual experience. The organ features an integrated 2.1 audio system and can be upgraded with an external 4.2 audio system, making it ideal both for use at home and for a chapel of up to 200 people.
- 33 stops / 183 total voices
- 4 unique organ styles + Variant Library
- 165 Voice Palette™ voices
- 18 orchestral voices
- 50 Memory Levels x 10 general pistons & 15 divisionals
- Traditional wood veneer cabinet with deluxe wood tambour
- Available in light, medium and dark oak veneer
- Matching wood veneer back panel
- LED lighted music desk
- Tab stop controls
- Record/playback with STOP, PLAY, REC pistons
- USB-enabled for unlimited storage of registration data and saved performances
- Hymn Player automatically plays 350 built-in hymns with introduction & verse or Prelude mode
- Bench in matching finish
- Hardwood rolltop + lock
- 32-note radiating AGO pedalboard velocity-sensitive for orchestral voices
- Self-contained pedalboard mechanism for greater reliability on uneven flooring or carpeting
- Kick switch programmable as Off, Next, Prev, Sustain and Gospel Rotor for orchestral voices
- Programmable pedal F# sustain function for orchestral voices
- Memory +/- pistons
- 9 historic temperaments
- True Sound Space: 12 real reverb environments
- 2.1-channel internal audio system: 2 channels x 50 watts fullrange audio + 1 channel x 160 watts subwoofer
- MIDI In and Out connections
- Stereo headphone jack
- 2 x ¼” Stereo Line inputs
- 2 x ¼” Stereo Line outputs
- Tuning control
- -6/+5 transposer (resets to 0 with general cancel piston)
- 5 loudspeakers using coaxials for a rich and highly defined sound
- 8-channel external audio outputs
- 2-channel audio system for external loudspeakers (optional)
- Onboard voicing finishing and leveling controls
- Pipe organ modeling technologies
- Great/Pedal Enclosed
- Organ Type piston instantly activates American Eclectic, English Cathedral, French Romantic or German Baroque stops
- Adjustable tremulants
Model 233 Inspire Series Specifications
| AMERICAN ECLECTIC | ENGLISH CATHEDRAL | FRENCH ROMANTIC | GERMAN BAROQUE | VARIANT LIBRARY |
|---|---|---|---|---|
GREAT |
||||
| Violone 16 | Open Diapason 16 | Bordun 16 | Montre 16 | Quintaton 16 |
| Principal 8 | Open Diapason 8 | Montre 8 | Prinzipal 8 | Diapason 8 |
| Bourdon 8 | Chimney Flute 8 | Bourdon 8 | Rohrflöte 8 | Clarabel Flute 8 |
| Gamba 8 | Second Diapason 8 | Flûte Harmonique 8 | Quintatön 8 | Doppel Flute 8 |
| Erzähler Céleste II 8 | Salicional 8 | Gambe 8 | Salicional 8 | Voix des Anges II 8 |
| Octave 4 | Principal 4 | Prestant 4 | Oktave 4 | Harmonic Flute 4 |
| Spitzflöte 4 | Waldflute 4 | Flute Ouverte 4 | Gemshorn 4 | Quint 2-2/3 |
| Super Octave 2 | Fifteenth 2 | Doublette 2 | Super Oktave 2 | Harmonic Piccolo 2 |
| Cornet V | Cornet IV | Cornet IV | Kornett V | Terz 1-3/5 |
| Fourniture IV | Mixture IV | Fourniture IV | FrMixture IV | Cymbel III |
| Trumpet 8 | Tromba 8 | Trompette 8 | Trompete 8 | Tuba 8 |
| Great Orch A | ||||
| Grand Mixtur VIII Library/MIDI B) | ||||
| Great Orch B | ||||
| Tremulant | ||||
| Swell to Great | ||||
SWELL |
||||
| Bourdon Doux 16 | Bourdon 16 | Dulciane 16 | Lieblich Gedackt 16 | Violon 16 |
| Diapason 8 | Horn Diapason 8 | Montre 8 | Prinzipal 8 | Geigen Principal 8 |
| Bourdon 8 | Stopped Diapason 8 | Bourdon 8 | Holzgedackt 8 | Harmonic Flute 8 |
| Viole Céleste II 8 | Viola Céleste II 8 | Voix Céleste II 8 | Gamba 8 | Flute Céleste II 8 |
| Octave 4 | Octave 4 | Prestant 4 | Oktave 4 | Fugara 4 |
| Flute Traverse 4 | Flute 4 | Flûte Octaviante 4 | Flöte 4 | Rohrflute 4 |
| Nazard 2-2/3 | Quintflute 2-2/3 | Nazard 2-2/3 | Nasard 3 | Sesquialtera II |
| Block Flute 2 | Lieblich Piccolo 2 | Octavin 2 | Waldflöte 2 | Italian Principal 2 |
| Tierce 1-3/5 | Seventeenth 1-3/5 | Tierce 1-3/5 | Quinte 1-1/3 | Sifflöte 1 |
| Plein Jeu IV | Mixture III | Plein Jeu III | Scharff IV | Ripieno IV |
| Double Trumpet 16 | Trombone 16 | Bombarde 16 | Posaune 16 | Corno di Bassetto 16 |
| Trumpet 8 | Trumpet 8 | Trompette 8 | Trompete 8 | Clarinet 8 |
| Oboe 8 | Cornopean 8 | Hautbois 8 | Dulzian 8 | Vox Humana 8 |
| Swell Orch A | ||||
| Swell Orch B | ||||
| Tremulant | ||||
PEDAL |
||||
| Contra Bourdon 32 | Dbl. Open Diapason 32 | Contra Violon 32 | Untersatz 32 | Open Wood 32 |
| Principal 16 | Open Diapason 16 | Contrebasse 16 | Prinzipalbass 16 | Violone 16 |
| Subbass 16 | Bourdon 16 | Soubasse 16 | Bordun 16 | Bourdon Doux 16 |
| Octave 8 | Diapason 8 | Montre 8 | Oktave 8 | Violoncello 8 |
| Bass Flute 8 | Flute 8 | Bourdon 8 | Gedackt Bass 8 | Lieblich Bourdon 8 |
| Choral Bass 4 | Fifteenth 4 | Prestant 4 | Oktave 4 | Nachthorn 4 |
| Mixture III | Mixture III | Plein Jeu III | Hintersatz II | Clairon 4 |
| Bombarde 16 | Trombone 16 | Bombarde 16 | Posaune 16 | Bass Clarinet 16 |
| Trumpet 8 | Tromba 8 | Trompette 8 | Trompete 8 | Trombone 8 |
| Pedal Orch A | ||||
| Pedal Orch B | ||||
| Great to Pedal | ||||
| Swell to Pedal | ||||
CONSOLE DIMENSIONS
Height: 46.7” (118.5 cm)
Width: 60.0” (152.4 cm)
Depth: 27.7” (70.3 cm)
Depth with pedalboard: 46.0” (116.8 cm)
